Rotary Latch Lock

Mingyi carries a large inventory of rotary latches including dual stage, single rotor, mini and claw styles.

Our Dual Stage Rotary Latches include right hand and left hand versions with threaded, dovetail and standard mounting styles.  We also provide single and dual activation styles.

We offer a Heavy Duty Rotary Latch that features a variety of trip lever and mounting axles for ease of mounting in right and left hand versions.

Available Options

• Separate models available for right-hand and left-hand opening styles

• Available in choice of threaded and through-hole mounting styles

• Two-stage cam version prevents false latching condition

• Hand actuated option eliminates the need for a separate cable and actuator

Standards and Specifications

• Made of Iron

• Blue Zinc plated

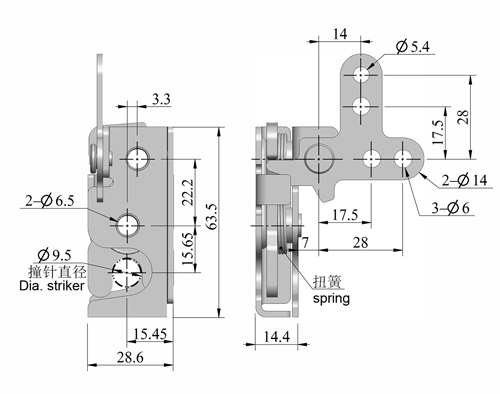

• 6.5 thru, mounting hole as standard, M6 thread under choice

• Componence striker 824-27 optional
