Quarter Turn Operation
Choose this option when the cam only needs a quarter turn to engage or disengage the frame. Confirm clockwise or counterclockwise movement with the selected cam.
Zinc Alloy Cam Lock
• Zinc alloy die-cast housing, barrel and nut
• Bright chrome-plated housing finish
• Select 90° or 180° operating rotation
• Standard K002 key configuration
• Compact locking for cabinets and access panels
• Cam and installation dimensions confirmed per project
• Keying options reviewed before bulk ordering
Send Inquiry
Product Introduction

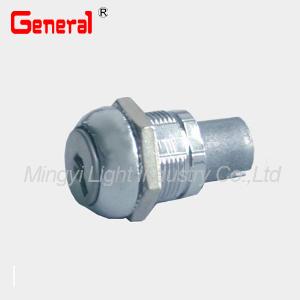

10087-27 Zinc Alloy Cam Lock
Model 10087-27 is a keyed cam lock with a zinc alloy die-cast housing, barrel and mounting nut. The bright chrome-plated housing provides a clean metallic finish for cabinets, enclosures and access panels where the installation dimensions and cam engagement match the door design.
The lock can be specified with 90-degree or 180-degree operating rotation. Rotation must be selected together with the opening direction and cam position.
- Model10087-27
- MaterialZinc alloy die-cast components
- FinishBright chrome-plated housing
- Rotation90° or 180°
- Standard keyK002
Product Specifications
| Model | 10087-27 |
|---|---|
| Product type | Key-operated cam lock |
| Housing material | Zinc alloy die cast |
| Barrel material | Zinc alloy die cast |
| Mounting nut material | Zinc alloy die cast |
| Housing finish | Bright chrome plated |
| Operating rotation | 90 degrees or 180 degrees |
| Standard key | K002 |
| Dimensions | Confirm housing, panel cutout and cam dimensions from the product drawing |
Choose 90 Degree or 180 Degree Rotation
The correct rotation is determined by how the cam must move between the locked and unlocked positions. Confirm the viewing side, key movement, opening direction and required stop positions before ordering.
Half Turn Operation
Choose this option when the installation requires a half turn between operating positions. Verify cam clearance throughout the complete movement.
Four Dimensions Control the Fit
Panel Cutout
The hole shape and dimensions must match the housing and anti-rotation features.
Panel Thickness
The barrel and mounting nut must provide sufficient engagement on the installed panel.
Grip Distance
Measure from the mounting surface to the point where the cam engages the frame.
Cam Geometry
Confirm cam length, width, offset, bend and mounting orientation for reliable closure.
Typical Application Review
Equipment Cabinets
Compact keyed access for cabinet doors after the cutout, grip and cam position are verified.
Electrical Enclosures
Suitable for compatible indoor enclosure panels; required environmental protection must be confirmed separately.
Storage Compartments
Key-operated closure for drawers or compartment doors that match the lock dimensions and cam travel.
Information Required for Model Confirmation
- Panel cutout drawing and panel thickness
- Required housing or barrel length
- Cam length, offset, bend and hole pattern
- 90° or 180° operating rotation
- Clockwise or counterclockwise opening
- Key removal position requirements
- Keyed-alike or different-key arrangement
- Quantity, destination and packaging needs
Keying and Security Confirmation
K002 is the published standard key for model 10087-27. If multiple locks must share one key or use different keys, state the required arrangement and quantity before ordering so compatibility can be checked.
Security performance depends on the complete cabinet, panel material, frame engagement, cam design and installation. If the application has a defined security or access-control requirement, include it with the inquiry for product review.
Installation Check
Verify the product drawing before preparing the panel. Insert the lock through the specified cutout, orient the housing, secure the mounting nut, install the approved cam and confirm that the cam clears adjacent components throughout its full rotation.
Test locking and unlocking with the door open first. Then close the door and check engagement without forcing the key. Excessive operating load normally indicates that the cam position, grip distance or frame alignment requires adjustment.
Compare more cam locks, review the full cylinder lock range, or see compression cam latches for doors that require pull-down compression.
Confirm Model 10087-27 for Your Panel
Send the cutout, panel thickness, grip distance, cam drawing, rotation, keying requirement and quantity.
10087-27 Cam Lock FAQ
Is model 10087-27 available with 90-degree rotation?+
Yes. The published options include 90-degree and 180-degree rotation. Confirm the required opening direction and cam position with the order.
What material is used for the lock components?+
The housing, barrel and mounting nut are specified as zinc alloy die-cast components. The housing has a bright chrome-plated finish.
Which key is standard for this cam lock?+
K002 is the published standard key. Provide any keyed-alike, different-key or key-removal requirements for confirmation before bulk ordering.
How do I confirm whether the lock fits my cabinet?+
Send the panel cutout, panel thickness, required barrel length, grip distance and cam dimensions. A door drawing or sample provides the most reliable basis for checking fit.
Is the cam included in the published specification?+
The current public specification does not identify a cam size. Provide the required cam length, offset and bend or send the existing cam drawing so the supplied configuration can be confirmed.
